BarrierPro™ Cast Iron Cement Retainers/Bridge Plugs

BarrierPro™ Cement Retainers & Bridge Plugs

BARRIERPRO™ DRILLABLE PRODUCTS


BarrierPro™ Cast-Iron Cement Retainer & Bridge Plug provides a solution to the challenges of API-11D1 qualified short to long-term barrier systems, remedial cementing, and the long drill-out times associated with these types of products.


Manufactured from high quality cast materials, the BarrierPro™ products provide many technical advantages over conventional products seen in the industry today. A few of these advantages include:


FEATURES AND BENEFITS

  • A fully tested & qualified API 11D1/ISO 14310 drillable barrier system for both short and long-term abandonment operations without the need for a cement plug directly above the tool, including an enhanced elastomer element design with increased pressure ratings;


  • A large-bore design (>3” stinger bore) for remedial cementing increasing pump times and efficiencies while reducing the risk of erosion and the loss of seal integrity in the valve system (over 72% increase in flow area);


  • Improved slip retention device requiring NO wire bands or slotted segments, eliminating the risk of losing slips downhole, and partial setting of slips providing a more debris tolerable product that performs in various well environments;


  • Body-Lock Ring feature locks the mandrel in position to prevent the mandrel from floating, which prevents issues from opening sliding valve, without the need of pressuring up the annulus to put the mandrel in the “down” position. Also prevents free rotation when attempting to drill through assembly;


  • Field convertible to a top-venting bridge plug and can be conveyed via wireline, drill pipe, tubing or coiled tubing – both mechanical and hydraulic options available;


  • MultiPro™ Setting tools and WLAKs are field convertible and compatible with both cast-iron and composite products – providing a more cost-effective solution for both inventory and space management on the rig site (ONE tool sets all drillable products)


  • Hydra-Set™ Adapter Kit (HSAK) – provides versatility for carrying out multiple applications such as single-trip negative tests applications, single-trip permanent & temporary abandonment, cementing operations, and more.


  • Patent Pending


There is a reason why oilfields across Texas, Louisiana, offshore in the Gulf of America, and Internationally have come to OSP for all their cementing equipment needs. By offering quality products like BarrierPro™ Cast Iron Cement Retainers (CICR) & Bridge Plugs (CIBP), we have made a name for ourselves as a trusted supplier of oilfield products. Contact us today to learn more about our cement retainers!

BARRIERPRO™ DRILLABLE PRODUCTS

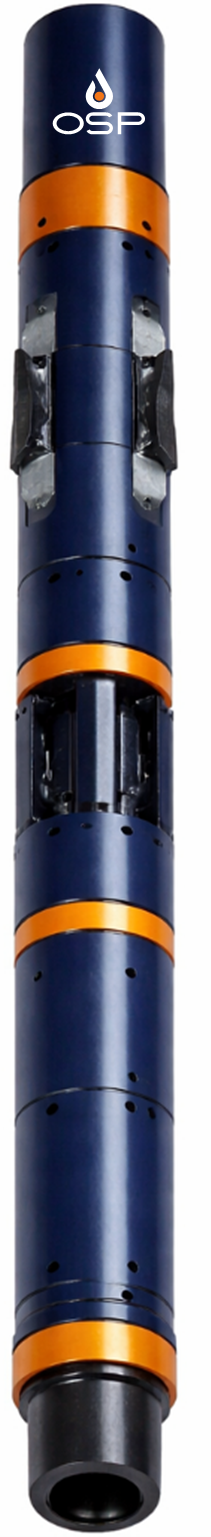

PERFPRO™ RETAINER PERFORATING SYSTEM
DRILLABLE CEMENT RETAINER AND PERFORATING GUN


OSP’s PerfPro™ Gun System, (BarrierPro™ Cast Iron Cement Retainer (CICR) and Perforating System) provides reliable, quality performance while lowering overall wellsite costs by:

  • Eliminating the high costs associated with wireline services
  • Eliminating the need to switch to a mud system for workovers


The PerfPro™ Gun System combines rugged, reliable perforating components with the versatility that reduces both rig time and spread costs. Additionally, eliminating mobilization or demobilization charges normally associated with wireline units. And, since no mud system is needed, clear fluids can remain in place for workover operations. Once in place, multiple variations of firing heads can activate the gun safely and efficiently.


 FEATURES AND BENEFITS

  • Redundant Firing System – a “true” redundant firing system removes the risk of issues with a single firing head system
  • Improved applications support – shock modeling provided for every job to ensure proper simulation and integrity of retainer perforating system

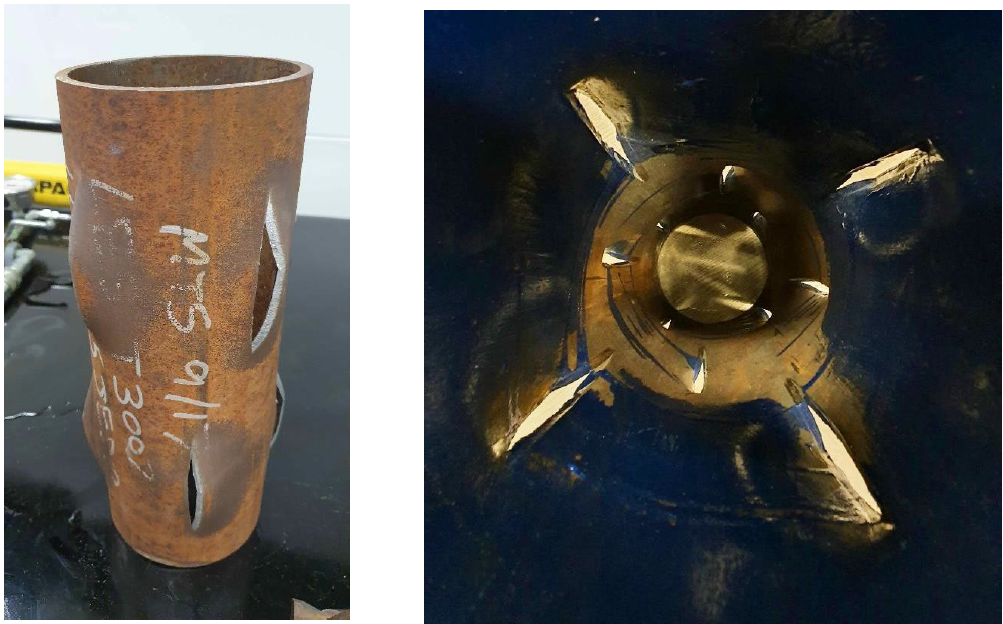

  • Reliability Verification – coupon testing available for model validation
  • Multiple Gun System options available:
  • Auto-Release Gun system available for full access to squeeze perforations
  • Abandonment Gun System available for large diameter dual casing strings


APPLICATIONS

  • Single-trip perforating, packer placement, and cementing on tubing
  • Cementing and perforating in underbalanced conditions
  • Plug-to-abandon operations
  • Workover cementing with clear fluids
  • Plugback set on wireline
  • Limited entry drill stem testing


SPECIFICATIONS

  • Gun and Firing Head Specifications available
  • Unique elastomer and backup system – requires less fluid and pump pressure to deploy plug horizontally
  • Slip Technology – dependable slip construction ensures plug is secured in place
  • Positive Lock-up – positive lock-up feature ensures lock-up of multiple plugs in a single wellbore


PROPERF™ RETAINER PERFORATING SYSTEM
